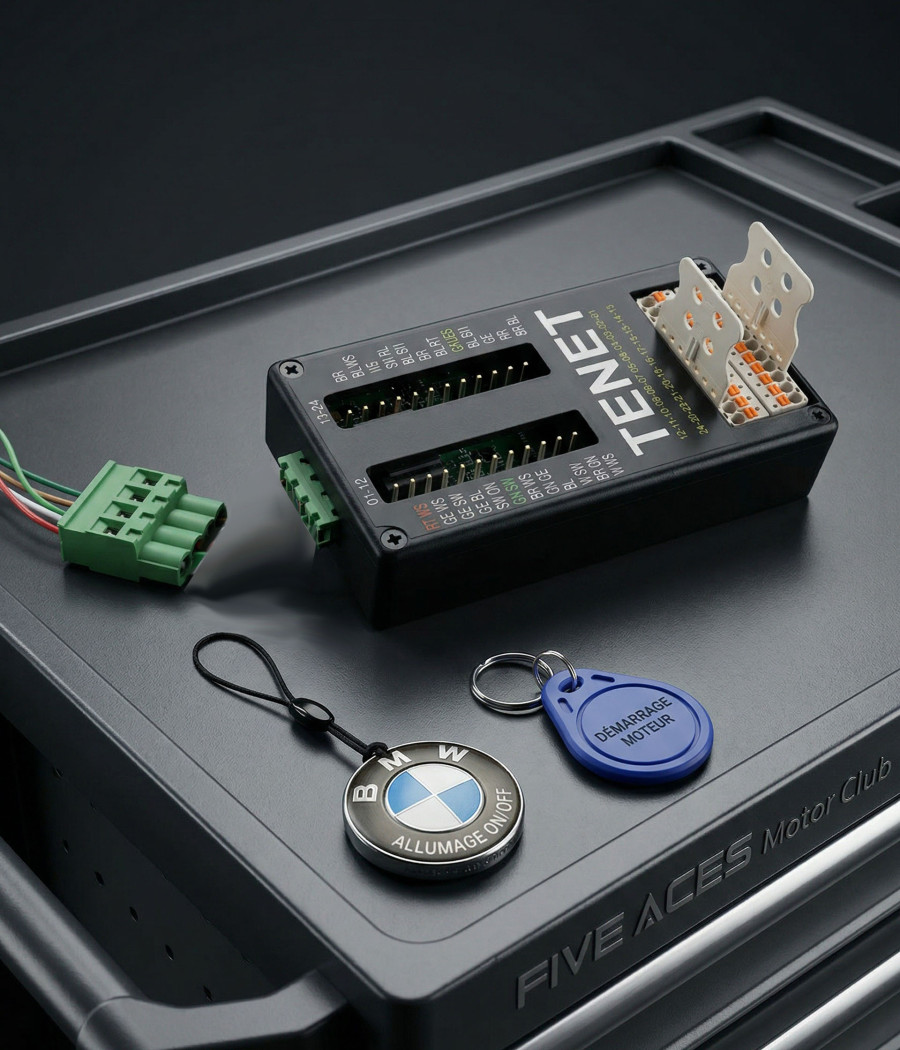

TENET - RFID
20210106
The TENET is an adapter designed to convert the original signals of motorcycles:
- BMW SERIES K1 - K75 - K100 - K1100 three and four cylinders with longitudinal engine from 750 to 1100 cm3 (from 1982-1997)
- BMW K1200 SERIES 1200 cm3 (from 1997-2005)
- BMW SERIES modern four-valve twin R 850-1200 cc first generation 850-1200 cc (from 1993-2006)
For BMW K1200 and twin R 850 to 1200 cm3 you must select the version with screw terminal block, the installation is not plug and play
By buying this product you can collect up to
21
loyalty points
.
Your cart will contain total
21
points
that can be converted into a voucher of
€4.20
.
The TENET coupled with an Aftermarket counter is compatible with your motorcycle if it has a settings option (circumference of the wheel, number of pulses, engine revolution) The main functions are:
- Engine speed signal
- Speed signal from inductive bridge sensor
- Neutral indicator
- Indication of the gear engaged 1/2/3/4/5/6
- Fuel level indicator
- Fuel level adjustment
- Low battery indicator
- Turn signal indicator (right, left, warning)
- High beam indicator
- Position light indicator
- ABS indicator
- Temperature indicator
- Oil pressure indicator
- Choke indicator
- Combined lighting
Additional specialized functions:
Reading 125 kHz passive RFID (Radio Frequency Identification) tags do not contain a built-in power source, the range of use is a few centimeters,
A Tag (BMW) for ON/OFF ignition management, a passage for ON and a second passage for OFF
An additional blue Tag for motor start (impulse command)
20210106
Data sheet
- Housing material
- ABS plastic (electronic box) 24 mm, 113 mm, 59 mm
- Protection index (IP)
- IP20 (abs housing)
