Types of connectors
Compatible terminal block
Screw terminal block
HALF MOON anodized
20230125

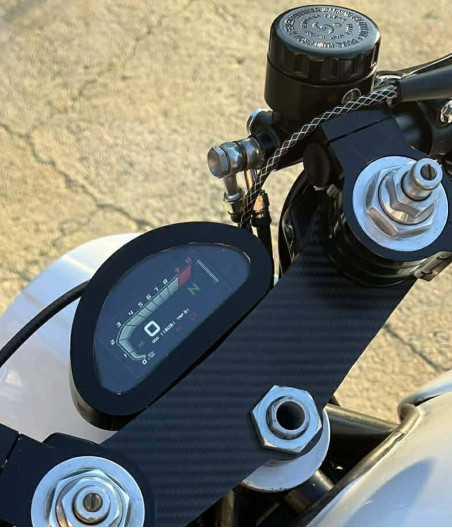

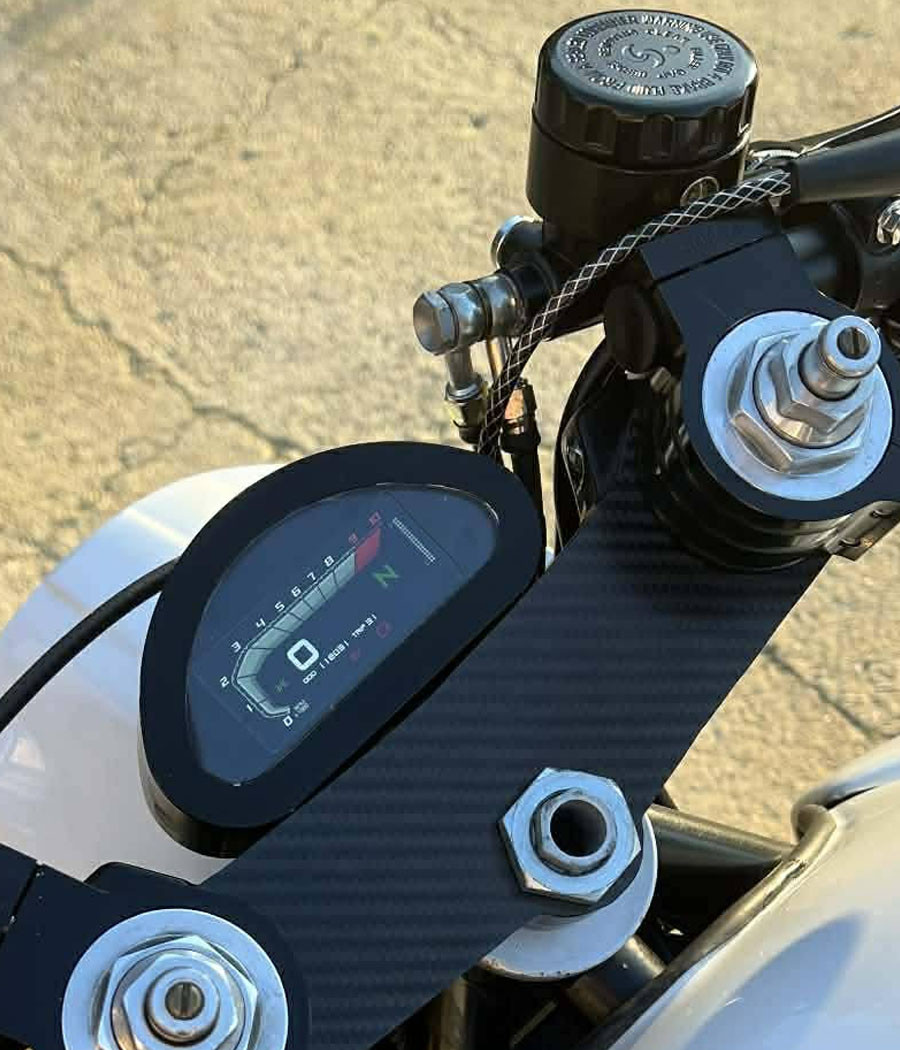

The ÆON unit is coupled with a 3.2-inch 320x 820 IPS rectangular LCD screen encapsulated in an aeronautical quality aluminum (unpolished metal) case machined from solid. “Product Developed, Manufactured, Assembled in France”
The main functions are:
- Engine speed signal
- Speed signal from inductive bridge sensor
- Neutral indicator
- Indication of gear engaged 1/2/3/4/5/6
- Fuel reserve indicator
- Low battery indicator
- Turn signal indicator (right, left, warning)
- High beam indicator
- Position light indicator
- ABS indicator
- Temperature indicator
- Oil pressure indicator
- Choke indicator
- Stop control indicator

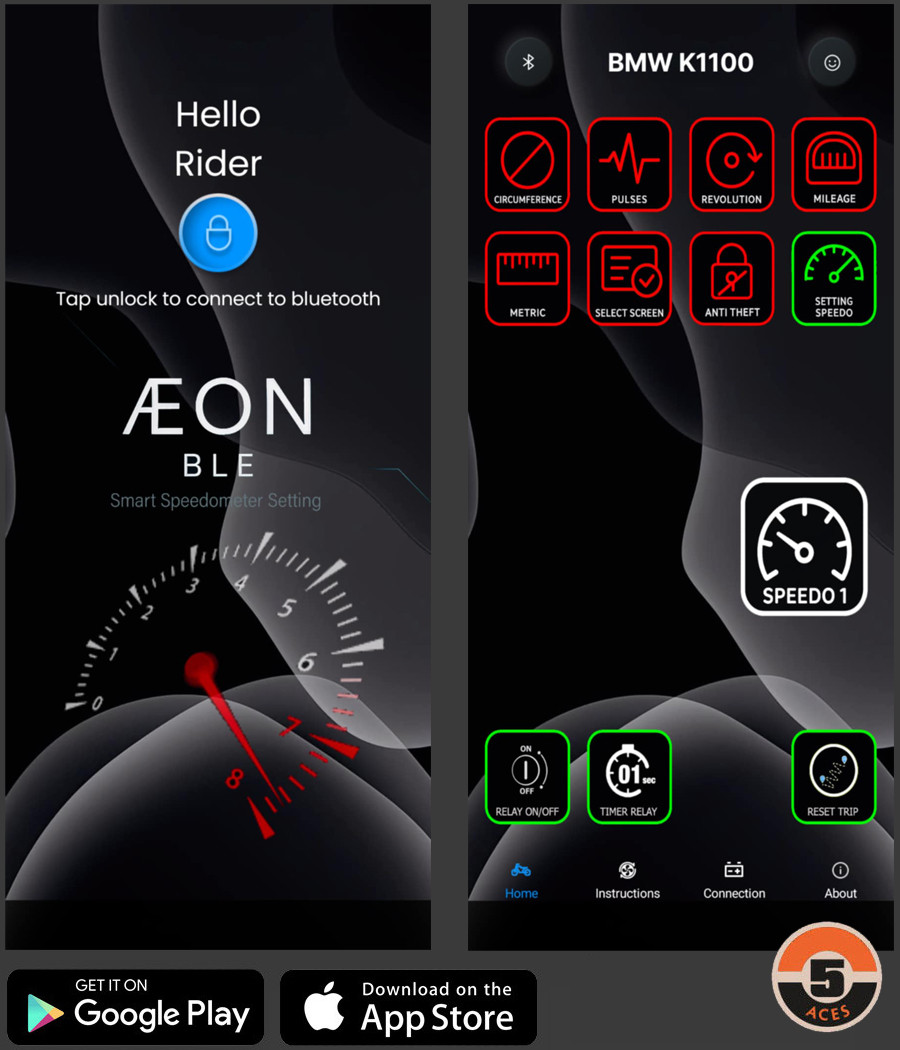

Settings with (Android) APK/AAB ANDROID on GooglePlay
Settings with iOS on App Store iOS
By buying this product you can collect up to
29
loyalty points
.
Your cart will contain total
29
points
that can be converted into a voucher of
€5.80
.
20230125
Data sheet
- Housing material
- ABS plastic (electronic box) 24 mm, 113 mm, 59 mm
Aluminum (display case) 125mm, 68mm, 38mm - Protection index (IP)
- IP20 (abs housing)
IP65 (aluminum screen housing) - Certification
- 2014/32/UE - 2009/113/CE - 2014/53/EU
- Screen Dimension
- LCM:32.2*76.6 mm
- Color
- 262K RGB 18bit
- Brightness
- 300 cd/m2
- Active Area(mm)
- 26.4*67.65mm 3.2inch
- Touch panel type
- NO
- Resolution
- 320RGB×820
- Working temperature
- -20℃~+60℃
- Storage temperature
- -30℃~+70℃
- Working humidity
- 10%~90%RH
- Display mode
- TFT LCD IPS
- Backlight Type
- LED
