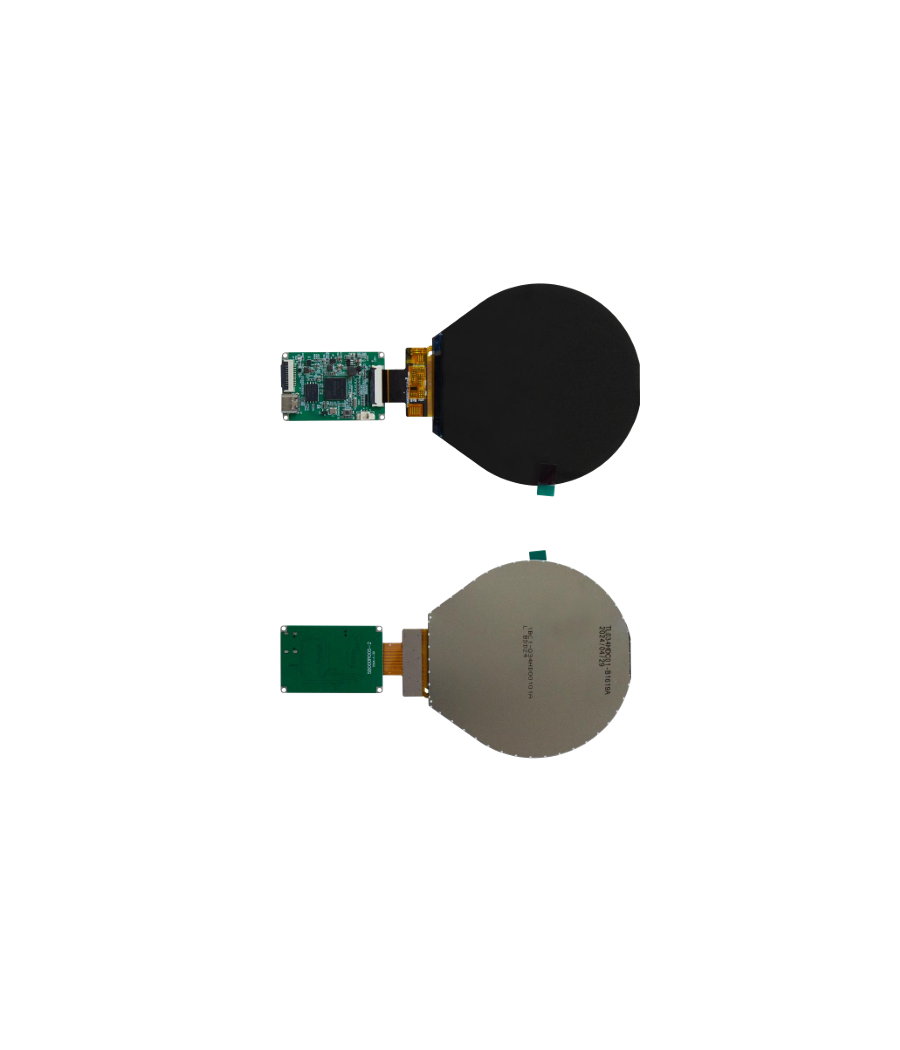

3.4" Round Smart HMI Display – 800 × 800– TFT LCD UART – 5V TTL/RS232 – Non-Touch Version

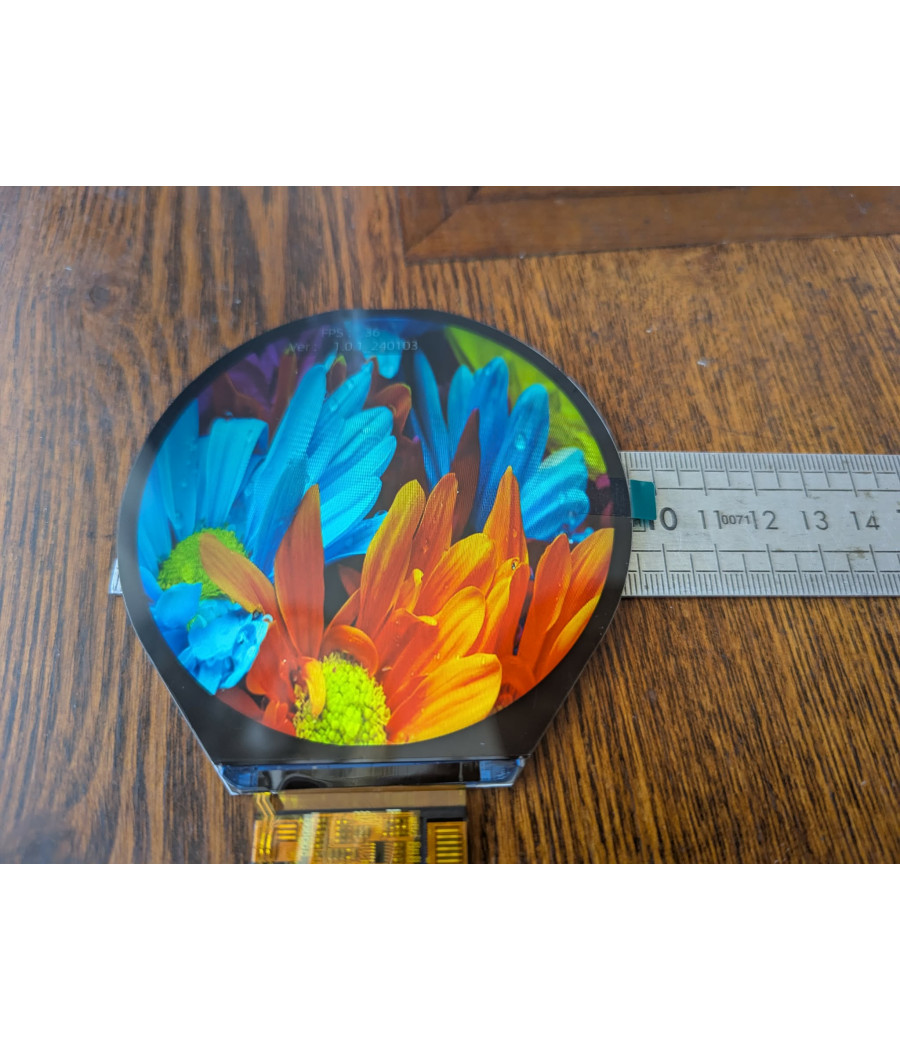

This 3.4-inch Round Smart HMI Display features a 800 × 800 pixel resolution and delivers excellent image quality thanks to its high-definition TFT LCD technology. This version is non-touchscreen and is designed to operate through external control via a UART (TTL/RS232) communication interface.

Powered by 5V, this display is easy to integrate into a wide range of applications including motorcycles, automotive systems, embedded projects, industrial equipment, and custom electronic solutions.

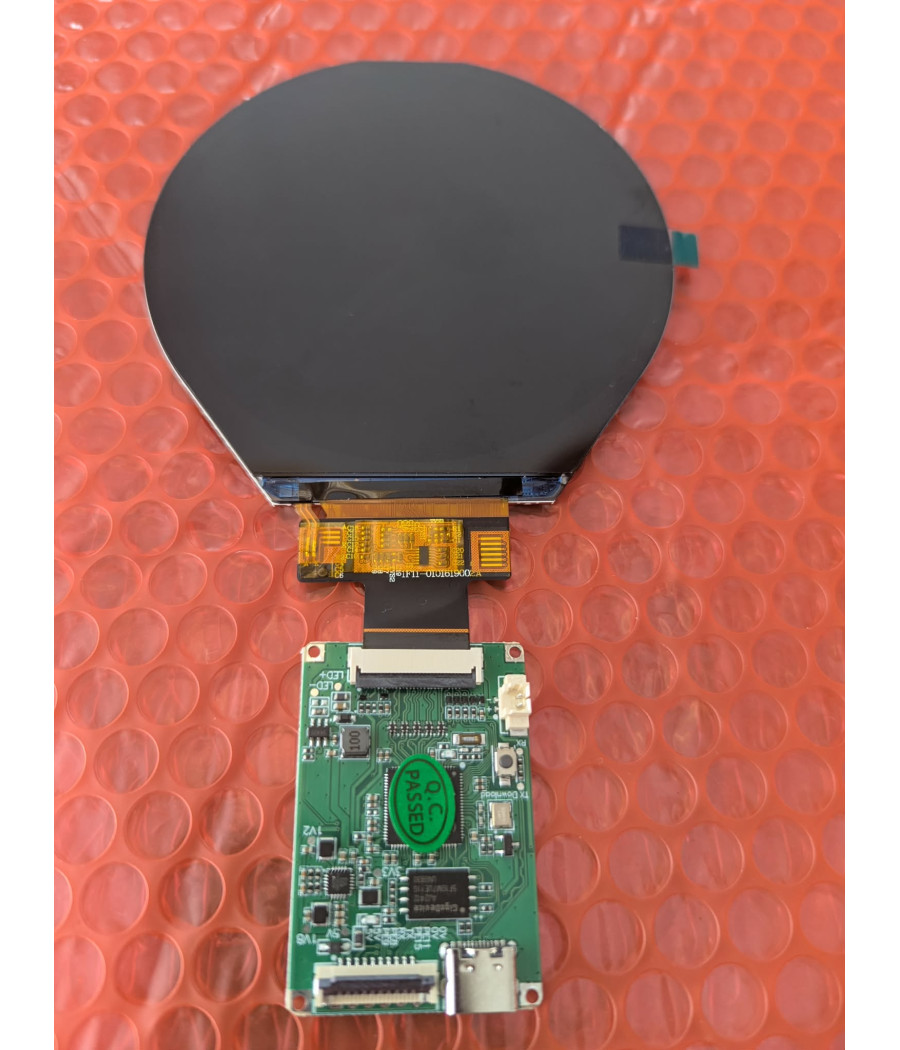

Package Contents

The product is supplied ready for installation and includes:

• 3.4" Round Smart HMI Display (non-touch version).

• Display connection ribbon cable.

• Power/interface board for easy connection and commissioning.

• 1-meter power cable.

Preconfigured Interface – 100% Plug & Play

The display is supplied with a complete graphical user interface, specifically designed to operate 100% Plug & Play with AEON – BASIC APP controllers.

The preconfigured interface includes:

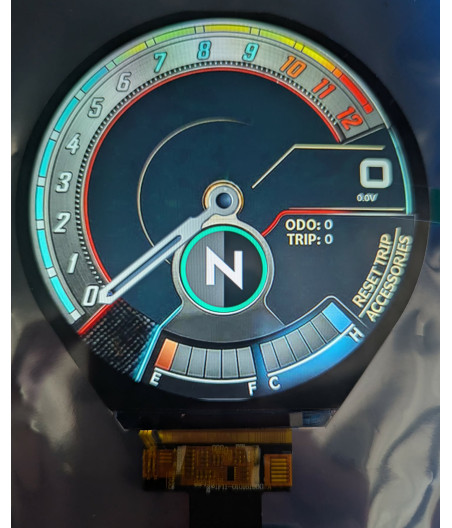

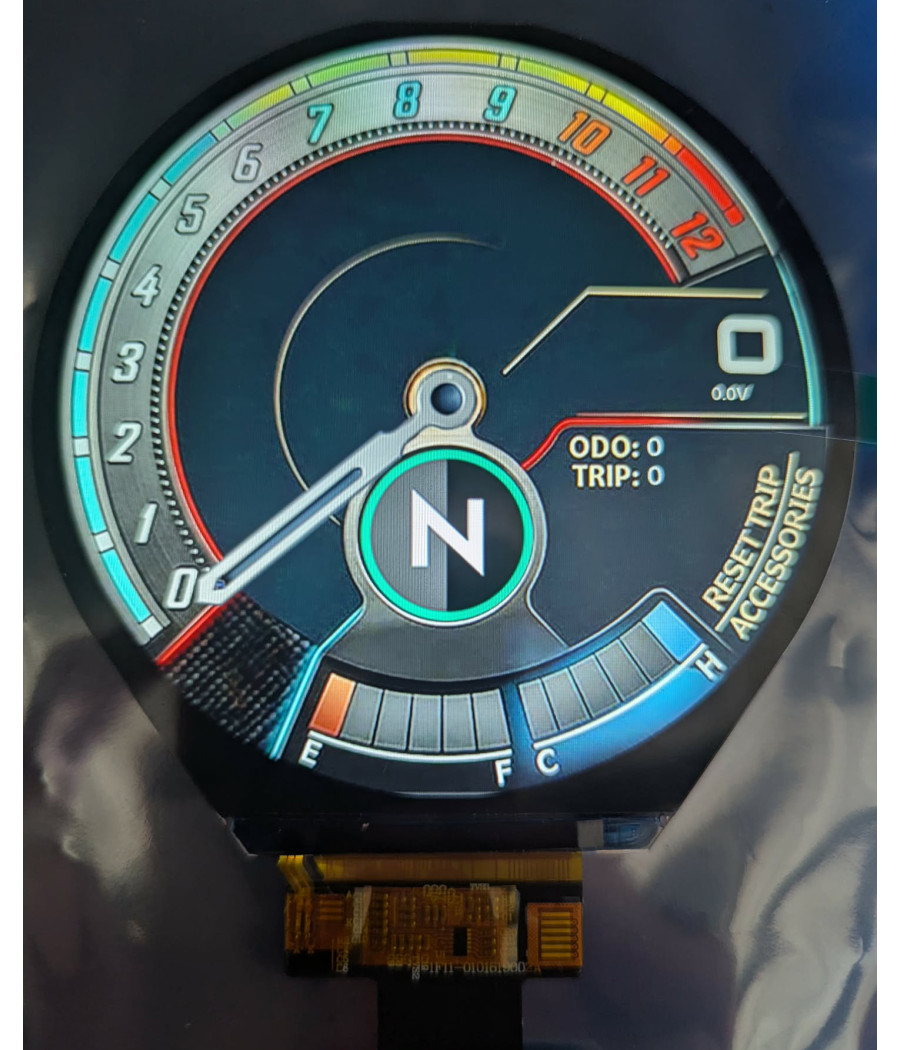

• 4 dashboard screens reproducing a modern motorcycle instrument cluster, with the main riding information ready to use.

• 1 settings screen allowing quick and easy system configuration.

This non-touch version is directly controlled by the AEON – BASIC APP controller, providing a simple, fast, and reliable solution without any programming required.

Simply connect the display to your AEON – BASIC APP controller and the system is immediately ready to operate with a fully functional and optimized interface.

This solution provides fast installation while offering a flexible platform that can be customized according to your project requirements.

Vehicle Installation

The display is supplied without an enclosure or mechanical mounting system. The customer is responsible for designing and manufacturing the housing adapted to their specific vehicle and installation requirements.

The enclosure can be manufactured using various processes:

• 3D printing;

• CNC machining;

• Sheet metal fabrication;

• Or any other suitable manufacturing method.

This complete design freedom allows a fully customized integration into your motorcycle, ATV, UTV, buggy, car, or any other vehicle.
